Robot's Electric Eel Sensor Detects Materials Without Contact

A team of Chinese engineers has given robots something close to a sixth sense — the ability to identify what an object is made of before ever touching it. Drawing directly from one of nature's most unusual electrical predators, the researchers have built a compact sensor that generates its own electric field and reads how that field warps in the presence of nearby materials. The result: a robot that can tell metal from plastic, glass from wood, all without making physical contact.

How the Electric Eel Became a Blueprint

The electric eel (Electrophorus electricus) doesn't just shock its prey — it uses a low-voltage electric field as a kind of sonar, sensing distortions caused by objects in its environment. Researchers at Xidian University, led by Professor Zhang Weiqiang, borrowed that exact logic and miniaturized it into a solid-state device.

The core of the sensor is a corona-polarized fluoropolymer electret — a material that holds a permanent electric charge the way a magnet holds a permanent magnetic field. Once charged, the electret radiates a stable, quasi-static electric field around itself, no external power source required. When any object enters that field, it reshapes the field lines in ways that depend on the object's electrical conductivity and dielectric properties. Those distortions induce measurable voltage changes on a grounded electrode inside the sensor, producing a readable signal. As Zhang explained to the South China Morning Post: "We want the machine to sense an approaching target — distinguish its material and surface condition — before any physical contact."

The research was published in the peer-reviewed journal Advanced Materials, with the full technical paper available via Wiley Online Library.

What the Sensor Can Do — and How Well It Does It

What Sensors Does The Robot Have And How Does The Robot Use These ... — Source: dxosetgpk.blob.core.windows.net

The performance numbers are striking for a passive, contact-free device. According to reporting by Interesting Engineering, the sensor achieves a near-field sensitivity of 1.05 volts per 50 micrometers of positional change — fine enough to resolve minute shifts in object distance. It has also proven durable, maintaining stable signal responses across 10,000 approach-and-withdraw cycles without degradation.

Crucially, the sensor distinguishes between fundamentally different classes of materials. Conductive targets like metals produce one type of field distortion — they draw field lines toward themselves. Dielectric materials — polymers, glass, dry wood — produce a different signature, shaped by how each material stores and displaces electrical charge. The waveform features of those distortions effectively act as a material fingerprint, allowing onboard classification without active emission or mechanical friction.

This places the technology in a different category from conventional proximity sensors, which typically detect only distance or presence. Here, the sensor is doing rudimentary material identification — a capability that has historically required either physical contact or complex imaging systems.

Why This Matters for Robotics and Beyond

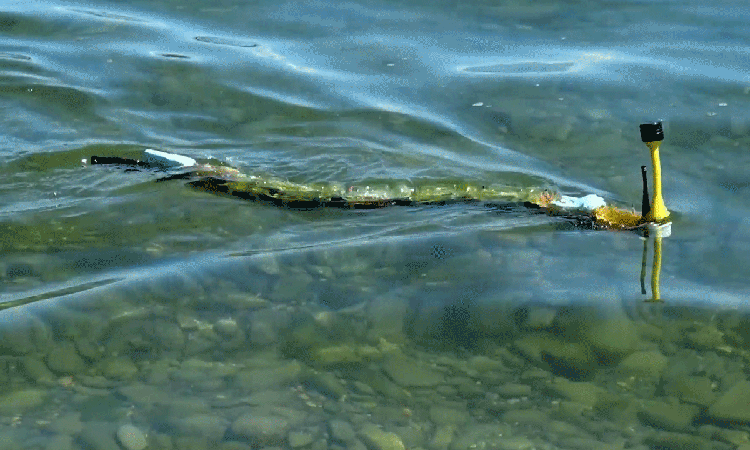

This amazing robot swims like an eel AND detects pollution — Source: ideas.ted.com

The implications for robotics are practical and immediate. Industrial robots operating on assembly lines, surgical robots in operating theaters, and autonomous systems in unstructured environments all face the same core challenge: how do you interact safely and intelligently with an object you haven't touched yet? Current solutions — computer vision, lidar, capacitive proximity sensors — each carry trade-offs in cost, resolution, or environmental sensitivity.

A passive electret sensor sidesteps many of those problems. Because the fluoropolymer holds its charge without external power, the device consumes minimal energy. Because it uses no moving parts and emits no active signal, it introduces no mechanical wear and no electromagnetic interference. And because it identifies material type rather than just proximity, it gives a robotic hand or gripper information it can act on — adjusting grip force, approach speed, or tool selection before contact is ever made.

The technology also has potential outside robotics: non-contact quality inspection on manufacturing lines, sorting systems for recycling facilities, or medical devices that need to characterize tissue without disturbing it.

The Xidian team's work arrives at a moment when demand for smarter robotic sensing is accelerating. Whether this particular sensor architecture makes it from the laboratory to commercial hardware depends on integration challenges still ahead — but the underlying principle, borrowed from an animal that solved non-contact sensing millions of years ago, is now demonstrably functional in silicon and polymer.

Key Takeaways

Researchers at Xidian University built a fluoropolymer electret sensor that mimics the electric eel's electrolocation ability, detecting objects without physical contact by generating and reading a passive electric field.
The sensor can identify material type — metal, plastic, glass, wood — based on how each material distorts the field, not just whether an object is present.
It achieves 1.05 V per 50 µm positional sensitivity and survives 10,000 use cycles, making it a credible candidate for real-world robotic deployment.
The approach is passive and low-power, giving it significant advantages over active sensing systems in cost, durability, and electromagnetic compatibility.
